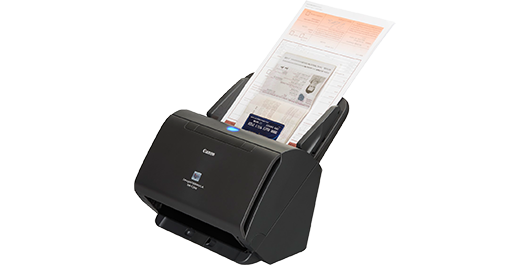

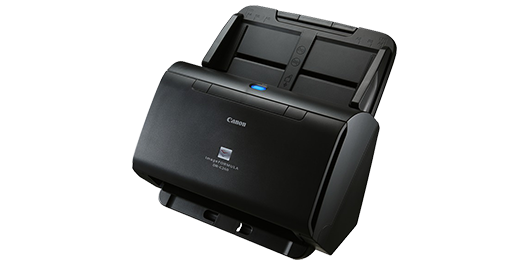

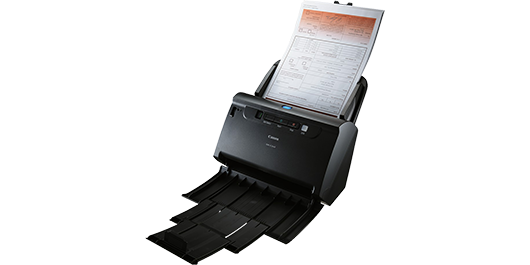

Canon imageFORMULA DR-C240 Specifications
GENERAL PRODUCT INFORMATION
Type
Desktop Type Sheet Fed Scanner
Scanning sensor unit
CMOS CIS 1 Line Sensor
Optical resolution
600dpi
Light source
RGB LED
Scanning side
Front / Back / Duplex
Interface
High speed USB 2.0
Dimensions (WxDxH)
Trays Closed: 291 x 253 x 231 mm
Trays Opened: 291 x 603 x 363 mm
Weight
Approx. 2.8kg
Power requirements
AC 100-240V (50/60Hz)
Power consumption
Scanning: 19W or less
Sleep Mode: 1.4W or less
Power Turned Off: 0.1W or less
Operating environment
10 - 32.5 °C
Humidity: 20 - 80% RH
Environmental compliance
RoHS
SCANNING SPECIFICATIONS
Black and White
45ppm / 90ipm
Colour
30ppm / 60ipm
Output resolution
150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Output mode
Black & White/Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle
from 3,500 to 6,000 scans/day
DOCUMENT SPECIFICATIONS
Width
50.8 - 216mm
Length
54 - 356mm
Thickness
27 - 209g/m² (0.06 - 0.25mm)
Long document mode
3000mm Max
Business card scanning
Size: 50.8 x 85mm or larger
Thickness: Less than 0.45 mm
Plastic card scanning
Size: 53.9 x 85.5mm
Thickness: 0.76mm (Embossed Card up to 1.4mm thick is supported)
Passport scanning
Up to 4mm thick (via carrier sheet)
Paper separation
Retard Roller Method
Feeder capacity
60-sheets (80g/m²)
SPECIAL FEATURES
Special Features
Automatic Page Size Detection, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch Separation with white blank sheet or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Double Feed Release, Double Feed Detection (Ultrasonic Sensor, Length), Barcode/2D code recognition
BUNDLED SOFTWARE
Windows
ISIS / TWAIN Driver (Windows VISTA SP2 / 7 SP1 / 8 / 8.1 / Server 2008 R2 SP1 / Server 2012 R2)
CaptureOnTouch Pro
Kofax VRS
Mac
TWAIN Driver
CaptureOnTouch
Kofax VRS
OTHER OPTIONS
Accessories
A4 Flatbed 102
NA10/WA10 Network Adapters
Carrying Case
Disclaimer
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
