IMAGE SENSOR
Type
22.3mm x 14.9 mm CMOS
Effective Pixels
Approx. 24.20 megapixels
Total Pixels
Approx. 25.80 megapixel
Aspect Ratio
3:2
Low-Pass Filter
Built-in/Fixed with fluorine coating
Sensor Cleaning
EOS integrated cleaning system
Colour Filter Type
Primary Colour
IMAGE PROCESSOR
Type
DIGIC 6
LENS
Lens Mount
EF/EF-S
Focal Length
Equivalent to 1.6x the focal length of the lens
FOCUSING
Type
TTL-CT-SIR with a CMOS sensor
AF System/ Points
45 cross-type AF points
(45 f/5.6 cross-type AF points, 27 f/8 points [9 cross-type], centre point is f/2.8 and f/5.6 dual cross-type)¹
AF working range
EV -3 - 18 (at 23°C & ISO100)
AF Modes
AI Focus
One Shot
AI Servo
AF Point Selection
Automatic selection: 45 point AF
Manual selection: Single point AF
Manual selection: Zone AF
Manual selection: Large Zone AF
AF points can be selected separately for vertical and horizontal shooting
Selected AF point display
Indicated by a transmissive LCD in viewfinder and Quick Control screen
Predictive AF *
Yes, up to 8m
AF Lock
Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.
AF Assist Beam
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
Manual Focus
Selected on lens
AF Microadjustment
C.Fn II-16
+/- 20 steps (wide and tele setting for Zooms)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number
EXPOSURE CONTROL
Metering modes
7560-pixel RGB+IR metering sensor
Metering with the area divided into 63 segments (9×7)
(1) Evaluative metering (linked to all AF points)
(2) Partial metering (approx. 6.0% of viewfinder)
(3) Spot metering (approx. 3.8% of viewfinder)
(4) Center-weighted average metering
Metering Range
EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)
AE Lock
Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.
Exposure Compensation
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
AEB
2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments
ISO Sensitivity **
Auto (100-16000), 100-16000 (in 1/3-stop or whole stop increments)
ISO can be expanded to H: 25600
During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25,600
SHUTTER
Type
Electronically-controlled focal-plane shutter
Speed
30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
WHITE BALANCE
Type
Auto white balance with the imaging sensor
Settings
AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.
Custom White Balance
Yes, 1 setting can be registered
WB Bracketing
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.
VIEWFINDER
Type
Pentaprism
Magnification
Approx. 100%
Eyepoint
Approx. 0.95x¹
Dioptre Correction
Approx. 22mm (from eyepiece lens centre)
Focusing Screen
Fixed (Transmissive LCD screen)
Mirror
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)
Viewfinder Information
AF information: AF points, focus confirmation, AF area selection mode
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.
Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Grid, Electronic level, Aspect Ratio
Other information: Battery check, Alert symbol, Flicker Detection
Depth of field preview
Yes, with Depth of Field preview button.
Eyepiece shutter
On strap
LCD MONITOR
Type

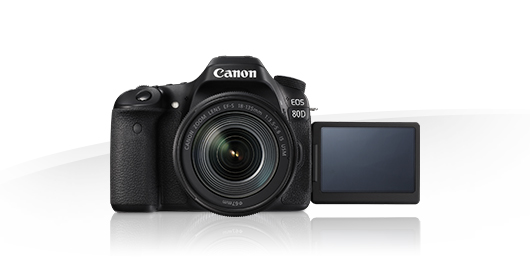

Touch screen Vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots
Coverage
Approx. 100%
Viewing Angle (horizontally/vertically)
Approx 170°
Coating
Anti-reflection, Solid Structure and Anti smudge
Brightness Adjustment
Adjustable to one of seven levels
Display Options
(1) Quick Control Screen
(2) Camera settings
(3) Electronic Level
FLASH
Built-in Flash GN (ISO 100, meters)
12
Built-in Flash Coverage
up to 17mm focal length (35mm equivalent: 27mm)
Built-in Flash recycle time
Approx. 3 seconds
Modes
Auto, Manual flash, Integrated Speedlite Transmitter
Red-Eye Reduction
Yes - with red-eye reduction lamp
X-sync
1/250sec
Flash Exposure Compensation
+/- 3EV in 1/2 or 1/3 increments
Flash Exposure Bracketing
Yes, with compatible External Flash
Flash Exposure Lock
Yes
Second Curtain Synchronisation
Yes
HotShoe/ PC terminal
Yes/ No
External Flash Compatibility
E-TTL II with EX series Speedlites, wireless optical multi-flash support
External Flash Control
via camera menu screen
SHOOTING
Modes
Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom
Picture Styles
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space
sRGB and Adobe RGB
Image Processing
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination and Chromatic aberration correction
Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Art bold effect, Water painting effect, Toy camera effect, Miniature effect)
Multi-exposure
RAW image processing - during image Playback only
Resize to M or S1, S2, S3
Drive modes
Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote), Silent single shooting, Silent continous shooting
Continuous Shooting
Max. Approx. 7fps. (speed maintained for up to 110 images (JPEG)(1)(10)(with UHS-I card), 25 images (RAW)(with UHS-I card))¹²
Intervalometer
Built-in, number of shots selectable from 1-99 or unlimited. Bulb timer possible
LIVE VIEW MODE
Type
Electronic viewfinder with image sensor
Coverage
Approx. 100% (horizontally and vertically)
Frame Rate
30 fps
Focusing
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Tracking sensitivity (-3 to +3) and Movie Servo AF Speed (-7 to +2)
Metering
Real-time evaluative metering with image sensor.
Evaluative metering, partial metering, spot metering, center-weighted average metering.
Display Options
Grid overlay (x3), Histogram, Electronic level
FILE TYPE
Still Image Type
JPEG: Fine, Normal (Exif 2.30 [Exif Print] compliant) / Design rule for Camera File system (2.0),
RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant
RAW+JPEG simultaneous recording
Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.
Image Size
JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 1920x1280, (S3) 720x480
JPEG 4:3: (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 1696x1280, (S3) 640x480
JPEG 16:9: (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 1920x1080, (S3) 720x408
JPEG 1:1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1280x1280, (S3) 480x480
RAW: (RAW) 6000x4000, (M-RAW) 4500x3000, (S-RAW) 3000x2000
Movie Type
MOV / MP4 (Video: H.264 Intra frame / inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user)
Movie Size
1920 x 1080 (59.94, 50 fps) inter-frame
1920 x 1080 (29.97, 25, 23.98 fps) intra or inter frame
1920 x 1080 (29.97, 25) lite inter-frame
1280 x 720 (59.94, 50 fps) inter-frame
1280 x 720 (29.97, 25) lite inter-frame
Movie Length
Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically)
Folders
New folders can be manually created and selected
File Numbering
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
OTHER FEATURES
Custom Functions
26 Custom Functions
Metadata Tag
User copyright information (can be set in camera)
LCD Panel / Illumination
Yes / Yes
Water/ Dust resistance
Yes
Sound Memo
No
Intelligent Orientation Sensor
Yes
Playback zoom
1.5x - 10x
Display Formats
(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display
(8) Movie edit
Slide Show
Image selection: All images, by Date, Folder, Movies, Stills
Playback time: 1/2/3/5/10/20 seconds
Repeat: On/Off
Background music: On/Off
Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3
Histogram
Brightness: Yes
RGB: Yes
Highlight Alert
Yes
Image Erase/Protection
Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time
Menu Categories
(1) Shooting menu (x6)
(2) Playback menu (x3)
(3) Setup menu (x4)
(4) Custom Functions menu
(5) My Menu
Menu Languages
25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
Firmware Update
Update possible by the user.
INTERFACE
Computer
Hi-Speed USB
Other
Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack), Headphone socket (Stereo mini jack)
DIRECT PRINT
Canon Printers
Direct printing via USB cable not possible
PictBridge
Via Wireless LAN only
STORAGE
Type
SD, SDHC or SDXC (UHS-I)card
SUPPORTED OPERATING SYSTEM
PC & Macintosh
Windows 10 / 8.1 / 8 / 7(*)
* With Microsoft .NET Framework 4.5 is installed.
Mac OS X 10.9, 10.10, 10.11
SOFTWARE
Image Processing
Digital Photo Professional 4.4.0 (RAW Image Processing)
Other
EOS Utility
EOS Lens Registration Tool
EOS Web Service Registration Tool
EOS Sample Music
Picture Style Editor
POWER SOURCE
Batteries
Rechargeable Li-ion Battery LP-E6N (supplied), built in for date & settings
Battery life
Approx. 960 (at 23°C, AE 50%, FE 50%)¹
Approx. 860 (at 0°C, AE 50%, FE 50%)
Battery Indicator
6 levels + percentage
Power saving
Power turns off after 1, 2, 4, 8, 15 or 30mins.
Power Supply & Battery Chargers
AC Adapter AC-E6(N), DC coupler: DR-E6, Battery charger LC-E6, Car Battery charger CBC-E6
PHYSICAL SPECIFICATIONS
Body Materials
Polycarbonate resin with glass fiber
Operating Environment
0 – 40 °C, 85% or less humidity
Dimensions (WxHxD)
139.0 x 105.2 x 78.5mm
Weight (body only)
Approx. 730g (CIPA testing standard, including battery and memory card)
ACCESSORIES
Viewfinder
Eyecup Eb, E-series Dioptric Adjustment Lens, Eyepiece Extender EP-EX15II, Angle Finder C
Case
Leather case EH21-L
Wireless File Transmitter
Built in Wi-Fi transmission
Connectivity to Smart devices is possible with Android version 4.0-4.4/5.0-5.1 or iOS 7.1/8-8.3.
NFC connectivity is possible only with compatible Android devices.
Remote Wi-Fi zoom operation of EF-S 18-135mm f/3.5-5.6 IS USM via the optional Power Zoom Adapter PZ-E1 is only possible on EOS 80D using a compatible smart device (as above) or while using supplied EOS Utility software
Lenses
All EF and EF-S lenses
Flash
Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
Battery Grip
BG-E14
Remote Controller/ Switch
Remote Switch RS-60E3, Remote Controller RC-6
Other
Hand Strap E2, GP-E2
Disclaimer
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
*with EF300mm f/2.8L IS USM at 50kph
** Recommended Exposure Index
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
*with EF300mm f/2.8L IS USM at 50kph
** Recommended Exposure Index
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
*with EF300mm f/2.8L IS USM at 50kph
** Recommended Exposure Index
Footnote
¹ Number of cross-type points depends on the lens used
¹ with 50mm lens at infinity, -1m-1 dpt
¹ Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
² Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
¹ Number of cross-type points depends on the lens used
¹ with 50mm lens at infinity, -1m-1 dpt
¹ Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
² Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
¹ Number of cross-type points depends on the lens used
¹ with 50mm lens at infinity, -1m-1 dpt
¹ Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
² Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
