Canon VB-M640V

VB-M640V

Keep every angle covered

/images/VB-M640V_tcm13-1310680.jpg

Benefits

  • High quality images day or night with 1.3 MP resolution
  • Superb low light performance and ultra wide coverage
  • Quick and easy installation with remote PTRZ set up
  • Additional Intelligent Intruder detection
  • Enhanced bandwidth management and bit rate control

Detailed Features

Take a more detailed look into Canon VB-M640V

High quality images day or night with 1.3 MP resolution

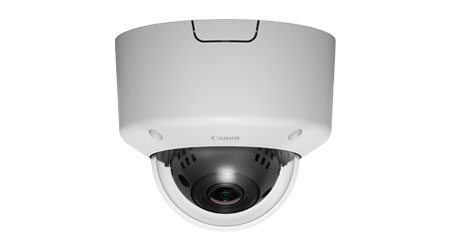

The compact VB-M640V is an IK10 vandal-resistant Fixed Dome camera that effortlessly captures everything in high quality 1.3 MP images day or night. Designed for indoor installation in a wide range of environments it features a Super-UD lens that provides maximum IR support and true Day and Night switching.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Quick and easy installation with remote PTRZ set up


The VB-M640V offers reduced installation times and cost thanks to an improved PTRZ lens mechanism with increased shock and vibration resistance, which allows quick and easy remote set up of camera angles from a PC.

Enhanced bandwidth and bit rate control


Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ASDR allows you to set the pre-configured image quality to 8 distinct areas within the field of view to lower the cameras H.264 bit rate.

Additional intelligent intruder detection


The Industry leading range of inbuilt analytics functions, which can automatically alert operators to alarming situations and activate recording, has been enhanced with the addition of Intruder detection. Intruder Detection identifies moving objects of a minimum specified size entering an out of bounds area and remaining there for a specified time.

Product Specification

Find out more about the Canon VB-M640V, its features and what it can do.

DIGIC NET II

Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

IK10

Certified vandal proof protection

Auto DayNight

Removable IR Filter

Intelligent Function

Video Content Analysis

Intrusion Detection

Zone protection

Power over Ethernet

Power over Ethernet

ADSR

Added bandwidth control

microSD

Edge recording

CCMT

Multiple camera management

VB-M640V
  • VB-M640V Main Unit
  • Setup CD-ROM
  • Ceiling Plate
  • Fixing Screws
  • Safety Wire & Fixing Screw
  • Wrench
  • Template
  • Power Connector
  • Audio Interface Cable
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
  • Packaging
