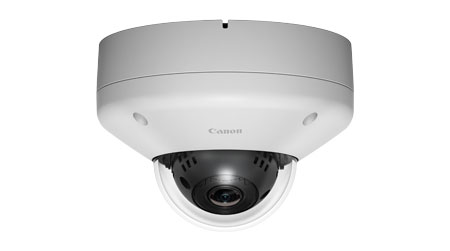

Canon VB-M640VE

VB-M640VE

Keep every outdoor angle covered

/images/VB-M640VE_tcm13-1310678.jpg

Benefits

  • High quality images day or night with 1.3 MP resolution
  • Superb low light performance and ultra wide coverage
  • Outdoor-ready with vandal and environmental protection
  • Easy installation plus enhanced intelligent detection
  • Enhanced bandwidth management and bit rate control

Detailed Features

Take a more detailed look into Canon VB-M640VE

High quality images day or night with 1.3 MP resolution


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. Image enhancing Haze Compensation automatically adjusts image contrast to bring environments with fog, haze or smog into clear view.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but it also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono).

Easy installation plus enhanced intelligent detection



The V-M640VE features a simple pigtail cable connection and PTRZ remote set up, for easy configuration and modification of camera angles from a PC, to help reduce installation times and cost. Operators can easily identify alarming situations thanks to a range of inbuilt intelligent detection functions, which can automatically activate recording. These include additional Intruder Detection, which identifies moving objects entering a specified area.

Outdoor-ready with vandal and environmental protection


The VB-M640VE is fully outdoor ready and vandal resistant. It offers IK10 shock resistance certification as well as IP66 certification for extensive weatherproofing and environmental protection. Its robust construction and innovative design is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, making it ideal for use in a wide range of harsh conditions such as coastal areas subject to salt damage and industrial processing sites with corrosive emissions.

Enhanced bandwidth management and bit rate control


Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ADSR allows operators to freely define areas of the scene where the best quality imaging is needed.

Product Specification

Find out more about the Canon VB-M640VE, its features and what it can do.

DIGIC NET II

Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

IK10

Certified vandal proof protection

All weather Model

Extended weatherproofing

Auto DayNight

Removable IR Filter

Intelligent Function

Video Content Analysis

Intrusion Detection

Zone protection

Power over Ethernet

Power over Ethernet

ADSR

Added bandwidth control

SD Card

Edge recording

CCMT

Multiple camera management

VB-M640VE
  • VB-M640VE Main Unit
  • Setup CD-ROM
  • Ceiling Plate
  • Fixing Screw
  • Safety Wire & Fixing Screw
  • Wrench
  • Template
  • Power Interface Cable
  • I/O Interface Cable
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
  • Packaging
