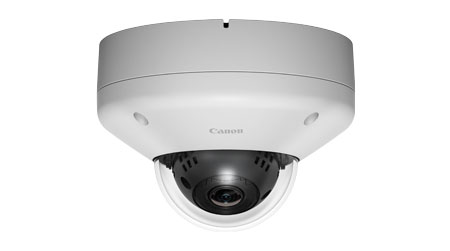

Canon VB-M641VE

VB-M641VE

Keep every outdoor angle covered

/images/VB-M641VE_tcm13-1310324.jpg

Benefits

  • High quality images day or night with 1.3 MP resolution
  • Superb low light performance and ultra wide coverage
  • Outdoor-ready with vandal and environmental protection
  • Extreme low start up temperature and operation
  • Easy installation plus enhanced intelligent detection

Detailed Features

Take a more detailed look into Canon VB-M641VE

High quality images day or night with 1.3 MP resolution


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but it also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Easy installation plus enhanced intelligent detection


The VB-M641VE features a simple pigtail cable connection and PTRZ remote set up, for easy configuration and modification of camera angles from a PC, to help reduce installation times and cost. Connections include Audio and Alarm inputs and operators can easily identify alarming situations thanks to a range of inbuilt intelligent detection functions, which can automatically activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells.

Outdoor-ready with vandal and environmental protection



The VB-M641VE is fully outdoor ready and vandal resistant. It offers IK10 shock resistance certification as well as IP66 certification for extensive weatherproofing and environmental protection. Its robust construction and innovative design is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, making it ideal for use in a wide range of harsh conditions such as coastal areas subject to salt damage and industrial processing sites with corrosive emissions.

Extreme low temperature start up and operation


The VB-M641VE is ideal for use in extremely cold environments thanks to its durable design and an optional heater that enables reliable start up at -30°C and operation in temperatures as low as -40°C. It can also operate equally efficiently in temperatures up to + 55°C, such as in hot tropical and arid regions.

Product Specification

Find out more about the Canon VB-M641VE, its features and what it can do.

DIGIC NET II

Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

IK10

Certified vandal proof protection

All weather Model

Extended weatherproofing

Auto DayNight

Removable IR Filter

Intelligent Function

Video Content Analysis

Intrusion Detection

Zone protection

Scream Detection

Sound detection

Power over Ethernet

Power over Ethernet

ADSR

Added bandwidth control

Linked Event

Conditional alarms

SD Card

Edge recording

CCMT

Multiple camera management

VB-M641VE
  • VB-M641VE Main Unit
  • Setup CD-ROM
  • Ceiling Plate
  • Fixing Screw
  • Safety Wire & Fixing Screw
  • Wrench
  • Template
  • Power Interface Cable
  • I/O Interface Cable
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
  • Packaging
