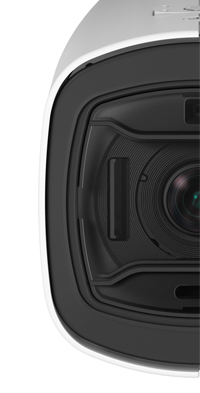

Canon VB-M740E

VB-M740E

Keep every outdoor angle covered

/images/VB-M740E_01_B_B_tcm13-1310326.jpg

Benefits

  • A versatile bullet camera for high quality images day or night
  • Superb low light performance and ultra wide coverage
  • Outdoor-ready with additional environmental protection
  • Enhanced bandwidth management and bit rate control
  • Easy installation with remote set up and simple cable connections

Detailed Features

Take a more detailed look into Canon VB-M740E

A versatile bullet camera delivering high quality images day or night


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. The VB-M740E also features image enhancing Haze Compensation, which automatically adjusts image contrast to bring environments with fog, haze or smog into clearer view.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 113.4° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001 lux (mono).

Easy installation with remote set up, simple cable connections


The VB-M740E features a simple pigtail cable connection and PTRZ support, which helps reduce installation times and cost by allowing installers to remotely configure camera zoom and focus using a PC. Operators can also easily identify alarming situations thanks to an industry leading range of inbuilt intelligent detection functions, which can automatically activate recording. These include additional Intruder Detection, which identifies moving objects entering a specified area.

Outdoor-ready with additional environmental protection


The VB-M740E is fully outdoor ready with extensive weatherproofing and environmental protection. Its robust construction and innovative design means that it is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, making it ideal for use in a wide range of harsh conditions including coastal areas subject to salt damage or industrial processing sites with corrosive emissions.

Enhanced bandwidth management and bit rate control


Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ADSR allows operators to freely define areas of the scene where the best quality imaging is needed.

Product Specification

Find out more about the Canon VB-M740E, its features and what it can do.

DIGIC NET II

Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

Auto DayNight

Removable IR Filter

Intelligent Function

Video Content Analysis

Intrusion Detection

Zone protection

Power over Ethernet

Power over Ethernet

ADSR

Added bandwidth control

SD Card

Edge recording

CCMT

Multiple camera management

  • VB-M740E Main Unit
  • Setup CD-ROM
  • Safety Wire & fixing screw
  • Ceiling Plate & fixing screws
  • Wrench
  • Template
  • Power Interface Cable
  • I/O Interface Cable
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
  • Packaging
