Canon imageFORMULA DR-9050C

Document Scanners

Product Tour

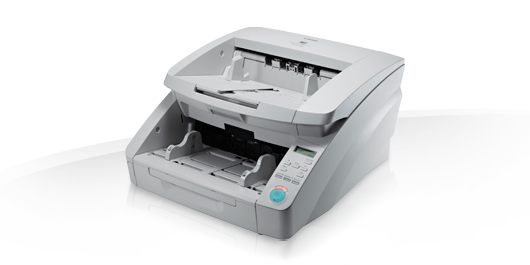

Canon imageFORMULA DR-9050C

The imageFORMULA DR-9050C offers reliable high-speed, high-quality scanning performance for businesses looking to improve their productivity and reduce costs.


  • High speed colour scanning – 90 ppm at 200 & 300dpi
  • Front feed user friendly design
  • High capacity 500 sheet feeding
  • Fast energy-saving warm up time
  • Advanced image processing
  • Robust - duty cycle of 27,000 scans/day
  • Bundled Capture Perfect

Detailed Features

Productivity when it matters

The DR-9050C captures a super-quick 90 ppm while scanning in colour, and black and white, at resolutions of 300dpi (A4, Portrait). A dedicated onboard image-processing chip achieves full rated speeds even when multiple image processing functions are selected.

Operator conscience design

The front–feed design of the DR-9050C provides both comfort and convenience allowing you to load, feed and remove documents effortlessly whilst seated. Furthermore, the control panel and job buttons are all designed to be easily viewable at eye-level.

Flexible and highly efficient

Invoices, delivery notes, reports, charts – some of the many documents businesses process every day. The DR-9050C comfortably handles them all, increasing efficiency and reducing paper workload costs.

An automatic A3 feeder deals with batches of up to 500 sheets and supports 3 different paper feed modes. The robust feeding mechanism feeds and separates mixed documents with ease and, in the rare event of an error, an ultrasonic double feed detection sensor immediately notifies the user for instant problem resolution.

The DR-9050C boasts strong environmental credentials too and is one of the most energy efficient scanners in its class.

Advanced image processing

A huge range of powerful features such as Auto-colour Detection, Text Orientation Recognition, Auto Paper Size and Deskew detection ensure superb quality and optimum efficiency.

Built for tough workloads

The DR-9050C is designed to take on your toughest workloads and reliably handles suggested daily duty cycle of up to 27,000 scans a day.

Software included and options

Canon’s CapturePerfect software is bundled with the DR-9050C, with a Capture Perfect Software Developers Kit (SDK) also available for easy, customised integrations.

Product Specification


Type Desktop Type Sheet Fed Scanner
Scanning Unit Sensor CMOS CIS 3 Line Sensor
Optical Resolution 600dpi
Light Source RGB LED
Scanning Side Front / Back / Duplex
Scanning Speed DR-6050C:
B&W/ Grayscale 200/ 300dpi: 60ppm/120ipm (Portrait A4); 70ppm/140ipm (Landscape A4)
Colour 300dpi: 60ppm/120ipm (Portrait A4); 70ppm/140ipm (Landscape A4)
B&W/ Grayscale 200/ 300dpi: 75ppm/150ipm (Portrait A4); 90ppm/180ipm (Landscape A4)
Colour 300dpi: 75ppm/150ipm (Portrait A4); 90ppm/170ipm (Landscape A4)
B&W/ Grayscale 200/ 300dpi: 90ppm/180ipm (Portrait A4); 112ppm/225ipm (Landscape A4)
Colour 300dpi: 90ppm/170ipm (Portrait A4); 112ppm/170ipm (Landscape A4)
Power Requirements AC220 - 240V (50/60Hz)
Power Consumption Scanning: 84W, Sleep mode:3.9W (AC 220-240V) Power Turned Off:0W
Operating Environment 10 - 32.5oC (50 - 90.5oF), Humidity: 20 - 80% RH
Environmental Compliance RoHS and ENERGY STAR


Width 50.8 - 305mm
Length 70 - 432mm
Automatic Feeding AUTOMATIC, MANUAL & BYPASS Feeding Modes
Offset Feeding with lockable side guides
Long Document Mode 3000mm max. (Can be set on operation panel)
Thickness Automatic Feeding: 52 - 209g/m2 (0.06 - 0.25mm)
Bypass Mode: 40 - 255g/m2 (0.05 - 0.30mm)
Long Document Mode 3000mm max. (Can be set on operation panel)
Paper Separation Retard Roller
Feeder Capacity 300 Sheets (DR-6050C) / 500 sheets (DR-7550C/DR-9050C)
Selectable 500, 300, 100 sheets (only 300 &100 sheets for DR6050C)
Output Resolution 100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi


Binary B&W / Error Diffusion / Advanced Text Enhancement I & II
Grayscale 8-bit (256 level) Greyscale
Colour 24-bit colour


Image Processing Auto Page Size Detection & Deskew
Skip Blank Page
Text Orientation Recognition
Auto Colour Detection
Colour Dropout (R/G/B/Custom) / Enhancement (R/G/B/Custom)
Advanced Text Enhancement (I & II)
Moire Reduction
Prevent Bleed Through / Remove Background
Batch Separation
Punch Hole Removal
Scan Area Setting
Device Features Staple Detection
Rapid Recovery System
Ultrasonic Double Feed Detection
Manual/ Bypass Feeding
Job Function / User Registration
Verify Scan / Count Only Mode/ Count Clear
Buzzer Alarm
Selectable Background (White/Black)


Interface Dual Interface (High Speed USB 2.0 & SCSI-3)
Dimensions (mm) Tray closed: 480 (W) × 531 (D) × 315 (H) mm
Tray opened: 480 (W) × 718 (D) × 390 (H) mm
Weight Approx. 22.5 kg
Bundled Software ISIS / TWAIN Drivers
Capture Perfect 3.0
(Capture Perfect SDK available through Canon Business Solutions Developer Programme -
Option Post - Imprinter (Front side)
Patch Code Decoder
Barcode Module III


Consumable Exchange Roller Kit
Ink Cartridges
Daily Duty Cycle DR-6050C: Approx. 20,000 scans / day
DR-7550C: Approx. 22,500 scans / day
DR-9050C: Approx. 27,000 scans / day
  • 1 The scanning speed depends on the specification of PC and the setting of functions.
