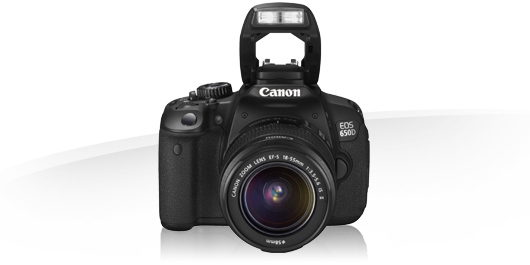

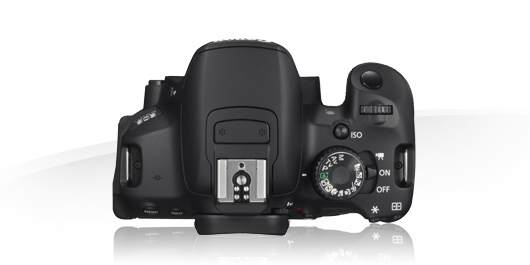

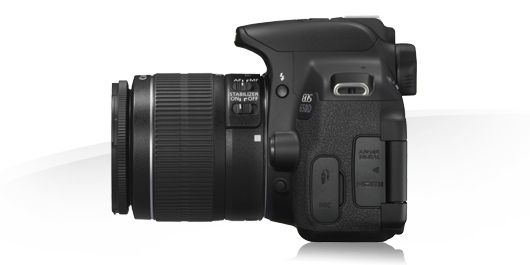

Canon EOS 650D
EOS Digital SLR and Compact System Cameras
Sign up to the FREE Canon Newsletter
Get free monthly news about products and software
Detailed Features
Advanced image quality
Capture every detail with 18-megapixel resolution, and enjoy the smooth tones and accurate colours of 14-bit DIGIC 5 image processing. The EOS 650D produces files big enough to print at large sizes or crop for alternative compositions without sacrificing quality.
Produce Full HD movie projects
Capture premium-quality movies at 1080p resolution, enjoying the right level of automatic or manual control for you. Autofocus is possible while filming, and a built in microphone enables the recording of high-quality stereo audio.
Keep up with fast moving action
Track moving objects accurately across the frame with an autofocus system comprising nine cross-type AF points. Continuous shooting at 5 fps for bursts of up to 22 frames means you’ll never miss that decisive moment.
Explore new viewpoints
The EOS 650D has a Vari-angle 7.7cm (3.0”) 3:2 ratio Clear View LCD II Touch screen that hinges away from the camera’s body and rotates through 270º. This enables video and still-image shooting from alternative viewpoints – such as over the top of crowds or from waist level.
Touch-screen control
Enjoy alternative access to the EOS 650D’s controls through a Vari-angle Clear View LCD II Touch screen. Shoot and focus with a single tap and use pinch and swipe gestures when reviewing images.
Low-light performance
The EOS 650D can capture images over a sensitivity range of ISO 100-12,800 (extendable to ISO 25,600), enabling hand-held shooting in low light without using flash.
Integrated Speedlite Transmitter
Explore creative lighting options by positioning Canon Speedlite flashes off camera and controlling them with the EOS 650D’s Integrated Speedlite Transmitter.
Scene Intelligent Auto
Canon’s Scene Intelligent Auto technology analyses each scene and sets the most appropriate combination of cameras settings automatically.
Great results in difficult conditions
HDR Backlight control captures three different exposures and combines them into one, retaining shadow and highlight detail. The EOS 650D’s hand-held night scene mode captures multiple images at fast shutter speeds and blends them together for a blur-free result.
| Type |
22.3 x 14.9mm CMOS |
| Effective Pixels |
Approx. 18.0 megapixels |
| Total Pixels |
Approx. 18.5 megapixels |
| Aspect Ratio |
3:2 |
| Low-Pass Filter |
Built-in/Fixed |
| Sensor Cleaning |
EOS integrated cleaning system |
| Colour Filter Type |
Primary Colour |
| Lens Mount |
EF/EF-S |
| Focal Length |
Equivalent to 1.6x the focal length of the lens |
| Type |
TTL secondary image forming, phase difference detection with AF dedicated CMOS sensor |
| AF System/ Points |
9 cross-type AF points (f/2.8 at centre) |
| AF Working Range |
EV -0.5 -18 (at 23°C & ISO100) |
| AF Modes |
AI Focus
One Shot
AI Servo |
| AF Point Selection |
Automatic selection, Manual selection |
| Selected AF Point Display |
Superimposed in viewfinder and indicated on LCD monitor |
| Predictive AF |
Yes, up to 10m¹ |
| AF Lock |
Locked when shutter button is pressed half way |
| AF Assist Beam |
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite |
| Manual Focus |
Selected on lens |
| Metering Modes |
TTL full aperture metering with 63-zone SPC
(1) Evaluative metering (linked to all AF points)
(2) Partial metering at center (approx. 9% of viewfinder)
(3) Spot metering (approx. 4% of viewfinder at center)
(4) Center weighted average metering |
| Metering Range |
EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100) |
| AE Lock |
Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes. |
| Exposure Compensation |
'+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB). |
| AEB |
'3 shots +/- 2 EV, 1/2 or 1/3-stop increments |
| ISO Sensitivity* |
AUTO(100-6400), 100-12800 in 1-stop increments
ISO can be expandable to H: 25600) |
| Type |
Electronically-controlled focal-plane shutter |
| Speed |
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) |
| Type |
Auto white balance with the imaging sensor |
| Settings |
AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9. |
| Custom White Balance |
Yes, 1 setting can be registered |
| WB Bracketing |
'+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias. |
| Type |
Pentamirror |
| Coverage (Vertical/Horizontal) |
Approx. 95% |
| Magnification |
Approx. 0.85x ¹ |
| Eyepoint |
Approx. 19mm (from eyepiece lens centre) |
| Dioptre Correction |
'-3 to +1 m-1 (dioptre) |
| Focusing Screen |
Fixed |
| Mirror |
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter) |
| Viewfinder Information |
AF information: AF points, focus confirmation light
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light
Image information: Highlight tone priority (D+), monochrome shooting, maximum burst (1 digit display), White balance correction, SD card information |
| Depth of Field Preview |
Yes, with Depth of Field preview button. |
| Eyepiece Shutter |
On strap |
| Type |
Touch screen vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots |
| Coverage |
Approx. 100% |
| Viewing Angle (Horizontally/Vertically) |
Approx 170° |
| Coating |
Anti smudge |
| Brightness Adjustment |
Adjustable to one of seven levels |
| Display Options |
(1) Quick Control Screen
(2) Camera settings |
| Built-in Flash GN (ISO 100, meters) |
13 |
| Built-in Flash Coverage |
up to 17mm focal length (35mm equivalent: 28mm) |
| Built-in Flash Recycle Time |
Approx. 3 seconds |
| Modes |
Auto, Manual flash, Integrated Speedlite Transmitter |
| Red-Eye Reduction |
Yes - with red eye reduction lamp |
| X-Sync |
1/200sec |
| Flash Exposure Compensation |
'+/- 2EV in 1/2 or 1/3 increments |
| Flash Exposure Bracketing |
Yes, with compatible External Flash |
| Flash Exposure Lock |
Yes |
| Second Curtain Synchronisation |
Yes |
| HotShoe/ PC Terminal |
Yes/ No |
| External Flash Compatibility |
E-TTL II with EX series Speedlites, wireless multi-flash support |
| External Flash Control |
via camera menu screen |
| Modes |
Scene Intelligent Auto, No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control, Program AE , Shutter priority AE, Aperture priority AE, Manual |
| Picture Styles |
Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3) |
| Colour Space |
sRGB and Adobe RGB |
| Image Processing |
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination
Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)
Creative filters (Art Bold, Water painting, Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) - during image Playback only |
| Drive Modes |
Single, Continuous, Self timer (2s, 10s+remote, 10s + continuous shots 2-10) |
| Continuous Shooting |
Max. Approx. 5fps for approx. 22 JPEG images¹, 6 images RAW² ³ |
| Type |
Electronic viewfinder with image sensor |
| Coverage |
Approx. 99% (horizontally and vertically) |
| Frame Rate |
30 fps |
| Focusing |
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Hybrid CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Phase detection AF (Quick mode) |
| Metering |
Real-time evaluative metering with image sensor.
Evaluative metering, partial metering, spot metering, center-weighted average metering. |
| Display Options |
Grid overlay, Histogram |
| Still Image Type |
JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0),
RAW: RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant |
| RAW+JPEG Simultaneous Recording |
Yes, RAW + Large JPEG |
| Image Size |
JPEG: (L) 5184x3456, (M) 3456x2304, (S1) 2592x1728, (S2) 1920x1280, (S3) 720x480
RAW: (RAW) 5184x3456 |
| Movie Type |
MOV (Video: H.264, Sound: Linear PCM, recording level can be manually adjusted by user) |
| Movie Size |
1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (30, 25 fps) |
| Movie Length |
Max duration 29min 59sec, Max file size 4GB |
| Folders |
New folders can be manually created and selected |
| File Numbering |
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset |
| Custom Functions |
8 Custom Functions with 34 settings |
| Metadata Tag |
User copyright information (can be set in camera)
Image rating (0-5 stars) |
| Intelligent Orientation Sensor |
No |
| Playback Zoom |
1.5x - 10x enabled in 15steps |
| Display Formats |
(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Jump Display |
| Slide Show |
Image selection: All images, by Date, by Folder, Movies, Stills
Playback time: 1/2/3/5 seconds
Repeat: On/Off |
| Histogram |
Brightness: Yes
RGB: Yes |
| Highlight Alert |
Yes |
| Image Erase/Protection |
Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time |
| Menu Categories |
(1) Shooting menu (x5)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu |
| Menu Languages |
25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese |
| Firmware Update |
Update possible by the user. |
| Computer |
Hi-Speed USB |
| Other |
Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack) |
| Canon Printers |
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge |
| PictBridge |
Yes |
| Type |
SD, SDHC or SDXC (UHS-I)card |
SUPPORTED OPERATING SYSTEM
| PC & Macintosh |
Windows XP inc SP3 / Vista inc SP1 and SP2 (excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.6-10.7 (Intel processor required) |
| Browsing & Printing |
ImageBrowser EX |
| Image Processing |
Digital Photo Professional |
| Other |
PhotoStitch, EOS Utility (inc. Remote Capture), Picture Style Editor |
| Batteries |
1 x Rechargeable Li-ion Battery LP-E8 |
| Battery Life |
Approx. 440 (at 23°C, AE 50%, FE 50%)¹
Approx. 400 (at 0°C, AE 50%, FE 50%) |
| Battery Indicator |
4 levels |
| Power Saving |
Power turns off after 30sec or 1, 2, 4, 8 or 15mins. |
| Power Supply & Battery Chargers |
AC Adapter Kit ACK-E8, Battery charger LC-E8, LC-E8E |
| Body Materials |
Stainless Steel and polycarbonate resin with glass fiber |
| Operating Environment |
0 – 40 °C, 85% or less humidity |
| Dimensions (WxHxD) |
133.1 x 99.8 x 78.8 mm |
| Weight (Body Only) |
Approx. 575g (CIPA testing standard, including battery and memory card) |
| Viewfinder |
Eyecup Ef, E-series Dioptric Adjustment Lens with Rubber Frame Ef, Eyepiece Extender EP-EX15II, Angle Finder C |
| Case |
Semi-Hard Case EH22-L |
| Wireless File Transmitter |
Compatible with Eye-Fi cards |
| Lenses |
All EF and EF-S lenses |
| Flash |
Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) |
| Battery Grip |
BG-E8 |
| Remote Controller/ Switch |
Remote Switch RS-60E3, Remote Controller RC-6 |
| Other |
Hand Strap E2 |
|
|
|
|
 |
