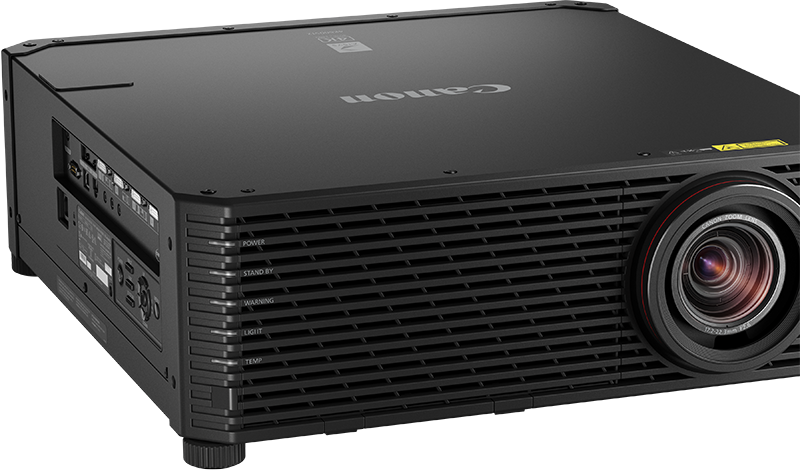

Canon XEED 4K600STZ
Specifications

Dimensions (WxHxD)

559mm x 201mm x 624mm

Weight

26kg

Key Features

4K Resolution

4K Resolution

Higher than 4K resolution at 4096 x 2400

AISYS

AISYS

Powerful brightness and a high native contrast ratio

HDMI

HDMI

HDMI port

PJLink

PJLink

Industry standard control protocol

Crestron Connected

Crestron Connected

Creston Room View for control

5 Year Warranty

5 Year Warranty*

Terms and conditions apply

Wi-Fi Certified

Wi-Fi Certified**

Easy remote wireless operation

View all

Specifications in detail

Panel

Type

4K-LCOS reflective display, Active Matrix

Size and Number

0.76” diagonal, 3 panels

Aspect Ratio

approx.17:10 (128:75)

Native Resolution

4096 x 2400 (4K), 9830400 pixels

Light Source

Type

Blue Laser Diode and Yellow Phosphor

Light source life

20,000 hr / 40,000 hr (ultra-long life mode)

OPTICS

Lens F Number and Focal Length

F2.6; f=17.2 – 22.3mm

Zoom Magnification and Control

1.3x motorised

Focus control

Motorised

Lens Shift

Vertical: +/-60%, motorised (ratio -1:11 ~ 11:-1)
Horizontal: +/-10%, motorised (ratio 4:6 ~ 6:4)

IMAGE AND AUDIO

Brightness

6,000 / 4,560 / 2,400 lumens (Normal, Quiet-1 and Quiet-2)
In circumstances where the ambient temperature is high, the lumen output may drop to protect the device from any damage.

Colour Brightness

6,000 / 4,560 / 2,400 lumens (Normal, Quiet-1 and Quiet-2)
In circumstances where the ambient temperature is high, the lumen output may drop to protect the device from any damage.

Brightness Uniformity

80%

Contrast Ratio

4,000:1 Iris set to Close3 (All white : all black, Native),
10,000:1 (Dynamic)

Projection Distance Coverage

0.9m – 17.7m (2.2m - 2.9m for 100" image)

Screen size

40” - 600” (88 x 51cm - 1315 x 770cm)

Throw Ratio (70" image)

1.0 - 1.3:1

Digital Zoom Magnification

N/a

Keystone Correction Range

Vertical: +/-20°
Horizontal: +/-20°

DVI (Single) Compatibility

640x480, 800x600, 1280x720, 1024x768, 1366x768, 1440x900, 1280x1024, 1920x1080, 2048x1080, 2560x1080, 1920x1200, 2048x1200, 2560x1440, 3840x2160 (24-30Hz), 4096x2160 (24-30Hz EDID not supported)

DVI 1x2

2560x1080, 2560x1440, 2560x1600, 3840x2160 (24-30Hz), 4096x2160 (24-30Hz)

DVI 2x2

3840x2160, 4096x2160, 4096x2304*, 3200x2400*, 3840x2400*, 4096x2400*


*when 'Panel drive mode' is set to 4096x2400

DVI 1x4

3840x2160, 4096x2160, 4096x2304*, 3840x2400*, 4096x2400*


*when 'Panel drive mode' is set to 4096x2400

HDMI2.0 (single)

640x480, 720x480, 720x576, 800x600, 1280x720, 1024x768, 1366x768, 1440x900, 1280x1024, 1920x1080, 2048x1080, 2560x1080, 1920x1200, 2048x1200, 2560x1440, 2560x1600, 3840x2160, 4096x2160

HDMI 1x2

1280x480, 1440x480, 1440x576, 2560x720, 3840x1080, 2560x1600, 3840x2160, 4096x2160, 3200x2400, 3840x2400 (EDID not supported)

Built-in Speaker

5.0W RMS, Monaural

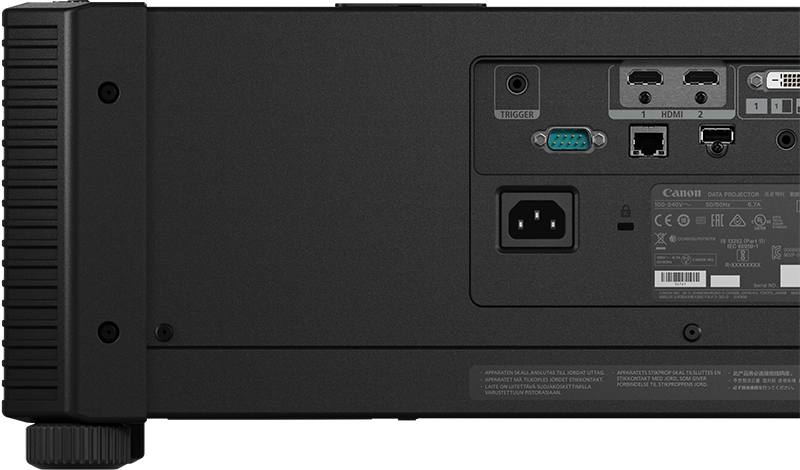

PORTS AND CONNECTORS

Digital RGB Input

DVI-D 25-pin x 4

Digital Video and Audio Input

HDMI* x 2


*4K60P, HDR, BT2020, DeepColour

Audio Input

3.5mm stereo mini-jack

Audio Output


3.5mm stereo mini-jack

Universal Send Feature Sets

USB Type A

Service Port / Projector Control

Mini D-Sub 9-pin, RS232C

Network Port

RJ-45 (1000BASE-T / 100BASE-TX / 10BASE-T)

Wi-Fi transmission standard

IEEE 802.11b / g / n
**A version without Wi-Fi is available – XEED 4K601STZ

Wi-Fi transmission distance

Up to 25m (no electric wave interference / clear view to access point)

Wi-Fi encryption

Open / WEP / WPA-PSK TKIP / WPA-PSK AES / WPA2-PSK TKIP / WPA2-PSK AES

Wi-FI Connection Modes

Infrastructure mode
PjAP (Projector Accss Point) mode

Wi-Fi certification and WPS

Acquired. Push Button Method (PBC) & PIN code method (PIN)

Wired Remote Control

3.5mm stereo mini-jack

MECHANISMS

Elevation Mechanism

Four rotary feet,  extension length 15mm

RATINGS

Power Source

100V - 240V AC, 50/60Hz

Power Consumption

Normal Mode: 665W / Eco Mode: 470W

Power Consumption stand-by

Network ON: 0.8W; Low power/network OFF: 0.4W

Noise Level

37/32/29dB (Normal, Quiet-1 and Quiet-2)

Operating Environment

0°C to +45°C (RH: 20-85%)

Storage Environment

-20°C to +60°C (RH: 5-90%)

Warranty

5 Years

All data is based on Canon standard testing methods except where indicated

Subject to change without notice.

* Warranty: Terms and conditions apply
**A version without Wi-Fi is available – XEED 4K601STZ
