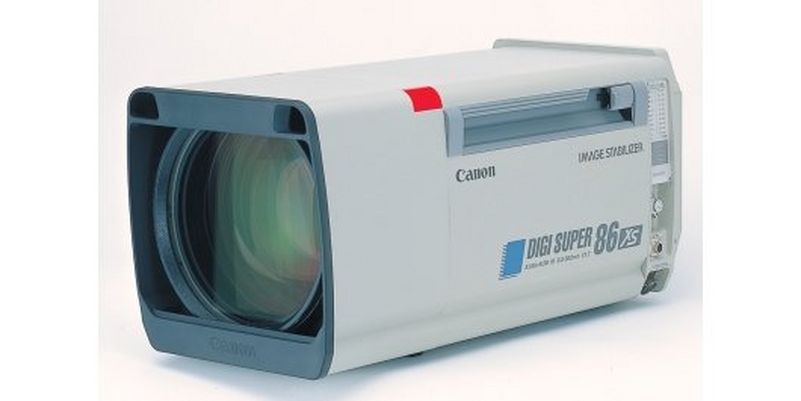

Canon DIGISUPER 86 II TELE xs

Canon DIGISUPER 86 II TELE xs

Ultra Telephoto Field Lens with advanced Image Stabilizer

A long telephoto HDTV field lens the DIGISUPER 86 II TELE xs features powerful optical, mechanical and digital technologies, including an advanced Image Stabilizer, to deliver superb quality images.

Benefits

  • Telephoto lens
  • Power optics
  • Internal focus
  • Advanced Image Stabilizer
  • Precision digital servo system
  • Constant Angle Focusing System; 32-bit CPU
  • Robust ergonomic design
  • Ecological design
  • Crossover technology options; 4-position turret

Detailed Features

Telephoto lens

The DIGISUPER 86 II TELE xs long telephoto field lens offers a focal length range of 13.5-1161mm. It is ideal for anyone – including mobile truck operators, broadcasters and major venue operators - who require exceptional telephoto flexibility to cover high definition sports and entertainment events.

Power optics

Advanced materials (including a high index ultra low dispersion material) combined with contemporary optical design and multilayer coatings produce an unsurpassed imaging system, delivering pristine results.

Internal Focus

Internal Focus uses a floating optical system to control chromatic aberrations. It allows operators to achieve wide-angle with reduced distortion and minimises variation of the centre of gravity while focusing.

Optical Shift Image Stabilizer

A second generation, built-in Optical Shift Image Stabilizer system (Shift-IS) counteracts shake, ensuring smooth, sharp images in all situations, whether at telephoto extremes or shooting high-speed objects. Includes separate horizontal and vertical control with high/low sensitivity settings.

Precision digital servo system

A digital servo system uses Canon-developed 16-bit optical rotary encoder devices to ensure precision control and repeatability of zoom and focus settings. The system allows for digital interface to Robotic and Virtual studio systems. 10-bit Iris Compatibility ensures high-resolution iris control.

Constant Angle Focusing System (CAFS)

CAFS uses a 32-bit CPU to eliminate focus "breathing". It calculates focus changes and synchronises the zoom to counteract picture size/angle of view changes when focusing.

Robust ergonomic design

The lens is ergonomically designed to eliminate centre-of-gravity variations with focus movement. Sealed optics offers protection against dust and smoke, while innovative electrical sealing techniques protect against radio interference.

Ecological design

All contemporary Canon lens systems are free of lead and other substances identified as harmful to the environment.

Crossover technology options; 4-position Turret

A crossover system allows use of the associated camera to switch in the optical extender system or change the aspect ratio between 16:9 and 4:3. 4-position turret includes spare switch positions.

Product Specification

PRODUCT

Product Category Field Lens
Product Series DIGISUPER XJ86x13.5B IE-II-D

OPTICAL FEATURES/SPECIFICATIONS

Zoom Ratio 86x
Image size 2/3''
Build-in Extender 2.0x
Focal Length Range 13.5~1161mm
Focal Length Range (with extender) 27~2322mm
Maximum Relative Aperture (F-Number) 1:2.4 at 13.5mm~480mm
1:5.8 at 1161mm (Ramping Characteristic)
Max. Relative Aperture (F-number) w/ext. 1:4.8 at 27mm~960mm
1:11.6 at 2322mm (Ramping Characterstic)
Angular Field of View 39.1° (H) x 22.6° (V) at 13.5mm
0.47° (H) x 0.27° (V) at 1161mm
Angular Field of View with Extender 20.2° (H) x 11.4° (V) at 27mm
0.24° (H) x 0.13° (V) at 2322mm
MOD From Front of Lens 3.0 Meters
Scene Object Dimensions at MOD 198.2cm x111.5 cm at 13.5mm
2.3 cm x 1.3 cm at 1161mm
Scene Obj. Dim at MOD w/ ext 99.1 cm x 55.7 cm at 27mm
1.2 cm x 0.7 cm at 2322mm
Protection Filter Standard
Build-in Optical Image Stabilizer Yes
Crossover Type Option

PHYSICAL SPECIFICATIONS

Approx. Size (WxHxL) 250.6x255.5x618.4mm
Approx. Mass 24.3kg (53.6lbs)
